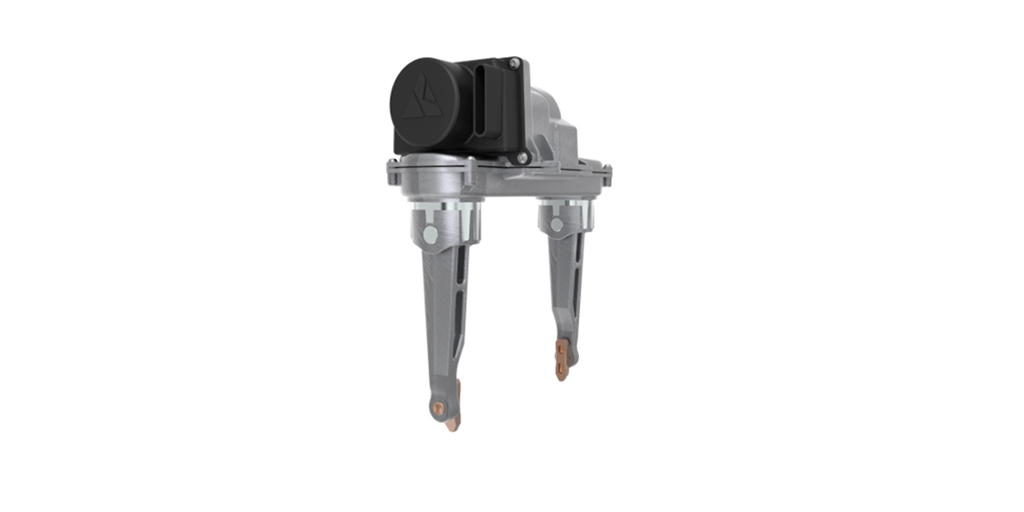

Dog Clutch Actuator
Full-function 2- or 3-position pivoting actuator for gear shift or other engage/disengage powertrain applications.
This actuator system manages actuation of a dog-clutch coupling from vehicle input and all the way
to the transmission shift sleeve.
Designed for efficient actuation fulfilling actual needs
of a dog-clutch coupling with fast and deep engagement while being strong during disengagement of the clutch.
Application

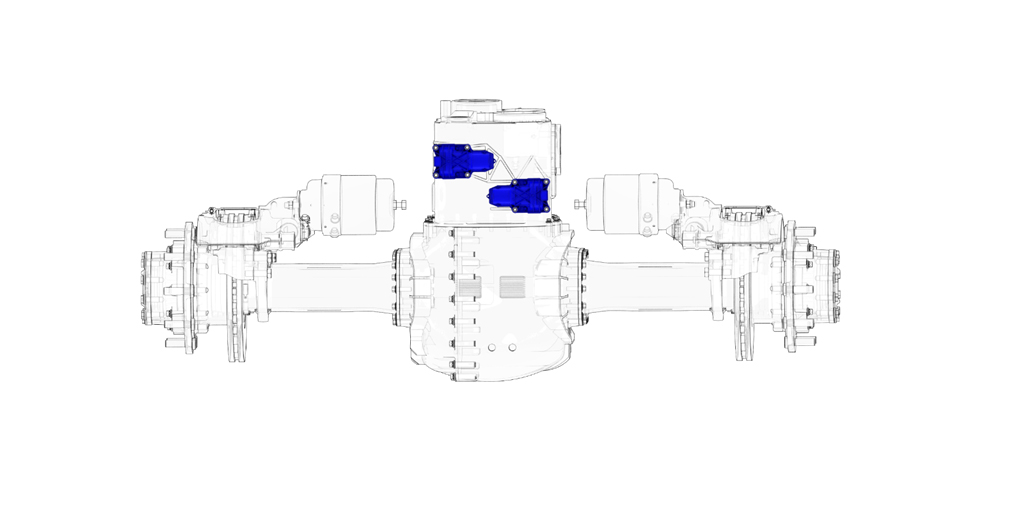

- Coupling/decoupling electrical drive axle unit on PHEVs
- Coupling/decoupling AWD coupling
- Gear shifting on EV transmissions with dog clutch coupling without sync
Features & benefits
- Unique cam and spring design for efficient handling of dog-to-dog alignment in the clutch
-
Built-in detent for precise and secure positioning of the clutch sleeve
-
Brushless motor for high power and vibration resistance
-
Integrated shift fork provides precise gear engagement
